Ble Module Inquiry For Samples
DESCRIPTION

Ready for Bluetooth 5 and high-grade IoT security

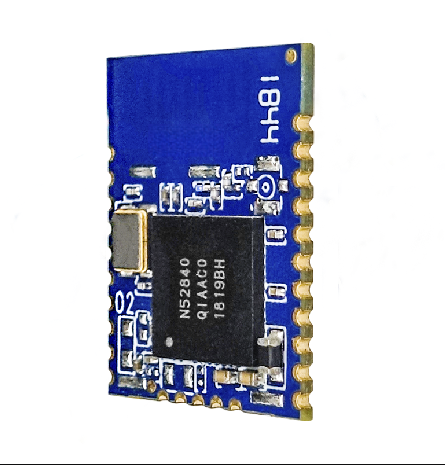

The SSB501A is an advanced, highly flexible single-chip solution for today’s increasingly demanding ULP wireless applications for connected devices on our person, connected living environments, and the IoT at large. It is designed to ready for the major feature advancements of Bluetooth® 5 and takes advantage of Bluetooth 5’s increased performance capabilities which include long-range and high throughput modes. Inherent industry-grade security is essential in today’s applications.

Bluetooth 5 – Bluetooth low energy further and faster

The nRF52840 is ready to take advantage of the considerable performance improvements for Bluetooth low energy with the arrival of the Bluetooth 5 specification. Of greatest importance is the support for longer range (up to x4 compared to Bluetooth 4.x) and doubling of on-air data-rate, up to 2Mbs from 1Mbs in Bluetooth 4.x.

Wide protocol support with the addition of 802.15.4

The 802.15.4 PHY and MAC layers are supported natively on the nRF52840. This allows nRF52840 to be used in a wide range of home and industrial sensor network applications as it supports two of the most popular wireless sensor standards in use today, Bluetooth low energy and 802.15.4 derivatives. This adds to the already existing radio support for Bluetooth low energy, ANT/ANT+ and 2.4GHz for proprietary.


Feature

◆ Bluetooth 5 ready multi-protocol radio

◆ Bluetooth 5 datarate support: 2Mbs, 1Mbs, 500Kbs, 125Kbs

◆ Support ANT Protocol

◆ 32-bit ARM Cortex-M4F @ 64MHz

◆ Up to 111 dB link budget for Bluetooth long range mode

◆ NFC-A on-chip

◆ Programmable output power from +8dBm to -20dBm

◆ -96dBm Sensitivity for Bluetooth low energy

◆ RSSI

◆ Wide supply voltage range +5.5v to 1.7v

◆ Full selection of interfaces SPI/UART/PWM

◆ Programmable Peripheral Interface - PPI

◆ High speed SPI interface 32MHz

◆ EasyDMA for all digital interfaces

◆ 12bit/200K SPS ADC

◆ 128 bit AES/ECB/CCM/AAR co-processor

◆ 20 General Purpose I/O pins

◆ SPI Master/Slave

◆ Two-wire Master (I2C compatible)

◆ UART (CTS/RTS)

◆ RoHS compliance (Lead-free)

◆ FCC,CE compliance

Application

◆ Computer peripherals and I/O devices

  • Mouse
  • Keyboard
  • Multi-touch trackpad

◆Interactive entertainment devices

  • Remote control
  • 3D Glasses
  • Gaming controller

◆ Advanced wearables

  • Connected watches
  • Advanced personal fitness devices
  • Wearables with wireless payment
  • Connected Health
  • Virtual/Augmented Reality applications

◆ IoT

  • Smart Home sensors and controllers
  • Industrial IoT sensors and controllers


/file/2307175949.pdf
